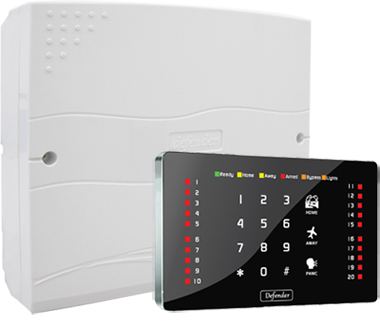

Defender 20 Zones Intruder Alarm
Central Features
  • Web-based, Internet connected alarm system
  • Control using iPhone, Android and Smart phone
  • Wireless sensor node for easy installation
  • 19 Fully programmable zones + 1 auto gate zone
  • Single touch for 2 arm modes: Away & Home
  • 2 Programmable partitions
  • 2 Programmable phone number for CMS reporting
  • 2 intelligent zones to minimize false alarm
  • Fully programmable as: Entry, Exit, Internal, Instant, 24 hour, Fire, Silent, and Normally open zone
  • 9 programmable user codes including Master Password
  • Remote or key switch arm or disarm function
  • Zone sensitivity with 255 selectable levels
  • Programmable Entry and Exit Delay from 0~255 seconds
  • Real time clock
Wireless Application
  • Wireless operation with RF module
  • RF receiver 2 channel come with 3 transmitters
  • Wireless operation: Arm & Disarm
  • Connect wirelessly using wireless sensor node
  • Node has long battery life (min 2 yrs) and low-batt indicator
  • Wireless repeater to extend range
  • Guaranteed wireless connection with TCP/IP-like 2-way routing protocol
Home Automation Control
  • 5 dedicated build-in security automation outputs
  • 20 options of intelligent automation activation / deactivation
  • Remote operation via phone control and Internet
Programming
  • Local programming from LED keypads
  • Non-volatile EEPROM memory retains programmed data even during total power loss
Remote Operation
  • User-friendly speech menu
  • User follows speech instruction to operate
  • Secure remote communications using security codes
  • Remote operation via mobile phone includes:
    - Zone status check
    - Arm & Disarm
    - Zone bypass
    - Home automation control
Internet Operation
  • User-friendly web interface
  • Secure operation with security code
  • Lockout to prevent unauthorized login
  • 1000 event log for all system operation
  • Remote operation via iPhone, Android and Smartphone includes:
    - System status check
    - Arm & Disarm
    - Zone bypass
    - IP camera remote view
    - Home automation control
    - Timer Arm / Disarm
    - Auto timer execute security automation outputs
    - View event log
    - Programmable user codes (master authentication)
Digital Communicator
  • 2 programmable phone numbers for CMS reporting
  • Pulse or DTMF dialling
  • Contact ID format reporting
Speech Dialer
  • 4 programmable phone numbers for voice messages reporting during alarm / emergency
Keypads
  • Durable and elegant touch screen keypad
  • Support up to 4 keypads per system
  • LED keypad displays status of each individual zone with indication of Trouble, Alarm and Bypass
  • Keypad lockout to prevent intruder
  • Programmable keypad lockout time and attempt
Access Codes
  • 3 level authorizations: Installer, Master & User
  • 1 installer code, 1 master code and 8 programmable user codes of 4 digits
Power Specification
  • AC power loss detection
  • Battery: 12 VDC / 7AH
  • DC Battery charging
  • Low battery voltage detection
Lightning Surge Protection
  • 2 Level Protection: Onboard and PSTN Line-in
  • Onboard and PSTN Line (MOV): withstanding current @ 250A
